MS1580 - HP EliteDisplay E273 27-inch Widescreen LCD Console-mount kit

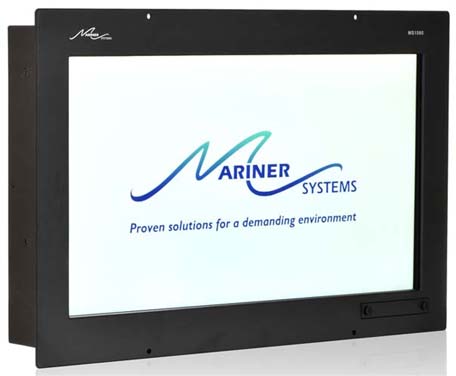

HP EliteDisplay E273 27-inch monitor with MS1580 Mariner Kit

The MS1580 Mariner kit enables you to fix the HP EliteDisplay E273 27-inch Widescreen LED Backlit Monitor into a console or rack.

The MS1580 Mariner Kit is supplied without the monitor so that you can install the HP E273 27-inch Widescreen LCD monitor locally. Full assembly instructions are supplied with each kit dispatched.

Alternatively, we can pre-install the HP EliteDisplay E273 27-inch Widescreen LCD monitor into the MS1580 Mariner Kit for you prior to dispatch. This means that you can install the assembly into your console / rack straight out of the box. Please note that there is an installation charge for this service - contact us for more details.

Please note that the although the monitor does retain its standard functionality we do not offer an automatic dimming function and it can not therefore be used in the front of the bridge where it may affect night vision. However, the monitor can be used in any area where night vision is not an issue.



Use in conjunction with
HP EliteDisplay E273 27-inch Widescreen LED Backlit Monitor 1FH50AA 1FH50AT
BACK TOP

Mariner Kit

Mariner kit weight (incl packaging)

11.9 Kg

Overall fitted dimensions (maximum)

700mm (w) x 460mm (h) x 104mm (d)
BACK TOP

Click here for the MS1580 product datasheet (pdf)

Click here for the MS1580 assembly drawing (pdf)

Click here for the MS1580 console cut-out drawing (pdf)

Click here to view the PRICE LIST

Notes: In order to conform with the relevant Marine Classification Societies’ requirements the Mariner Kit MUST be used and assembled in accordance with the assembly drawing and items list included in the Customer Information pack included with each Mariner kit.

BACK TOP

Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard Hewlett-Packard warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at www.hp.com for further details.
