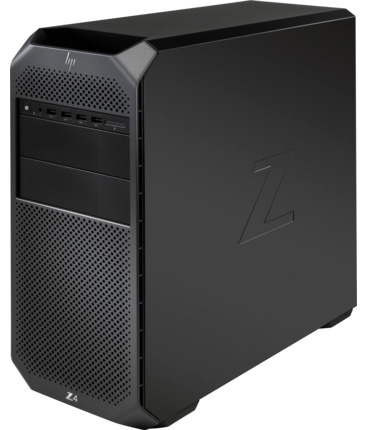

HP Z4 G4 Workstation

PC / Computer
Manufacturer	Hewlett-Packard (HP)
Manufacturer’s Part Number	Z4 G4
Description	Workstation
Use with Mariner Kit:	MS3070 (Desktop) MS3080 (Minitower)

Model No	ABS	BV	CCS	DNV-GL	KR	LR	NKK	PRS	RINA
Z4 G4


Type-approved	Passed testing - certificate pending
Testing in progress	No application made

Specification
Processor(s)	All Intel Xeon processors up to and including 4.0 GHz (4.4GHz turbo), 19.25MB cache, 14 cores)
RAM	32GB - 256GB (max) in 8 slots
Hard Disk Drive(s)	500GB - 2TB 7.2k SATA 256GB - 1TB SATA SSD 256 - 512GB Z Turbo Drive M.2 MLC SSD 256 - 512GB Z Turbo Drive M.2 TLC SSD 300GB 15k SAS SFF
Optical Drive(s)	9.5mm DVD Writer 9.5mm DVD-ROM 9.5mm Slim Blu-ray Writer
Graphics Option(s)	NVIDIA Quadro P400 2GB PCIe NVIDIA Quadro P600 2GB PCIe NVIDIA Quadro P620 2GB PCIe NVIDIA Quadro P1000 4GB PCIe NVIDIA Quadro P2000 5GB PCIe AMD FirePro W2100 2GB PCIe AMD Radeon Pro WX 3100 4GB PCIe AMD Radeon Pro WX 4100 4GB PCIe
Network Interface Card (NIC)	Intel I219-LM PCIe (integrated) Intel I219-AT PCIe (integrated) Intel I210-T1 GbE PCIe Intel i350-T2 PCIe Dual Port Gigabit Intel i350-T4 PCIe 4-Port Gigabit Intel X550-T2 10GbE Dual Port Intel X710-DA2 10GbE SFP+ Dual Port Intel 10GbE SFP+ SR Transceiver
Sound	Realtek HD ALC221 Audio (integrated)
Expansion Slots	2 x PCIe G3 x16 1 x PCIe G3 x4 1 x PCIe G3 x8 2 x PCIe G3 x4 M.2 for SSDs
Hard Drive Controller	MicroSemi SmartHBA2100-4i4e SAS Controller
Operating System(s)	Windows 10 Pro 64-bit for Workstations Windows 10 Pro 64-bit Windows 7 Pro 64-bit HP Linux Ready

OPERATING GUIDELINES

Although all of our solutions are tested against extreme environmental conditions for the purposes of marine type approval, installation should take into account the following guidelines:

> Keep the workstation away from excessive moisture, direct sunlight and the extremes of heat and cold. Wherever possible, ensure that the unit is operated within the manufacturer's specified operating range:

Temperature : 5 to 35 C (operating), -40 to 60 C (non-operating)

Humidity : 10 to 85% (operating), 10 to 90% (non-operating)

> Leave at least 10.2cm (4-inch) clearance on all vented sides of the workstation to permit the required airflow

> Never restrict airflow into the workstation by blocking any vents or air intakes

> If the workstation is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure, and the same operating guidelines listed above will still apply

By following these guidelines you will maximise the life of your workstation and minimise service costs

Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard Hewlett-Packard warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at www.hp.com for further details.
