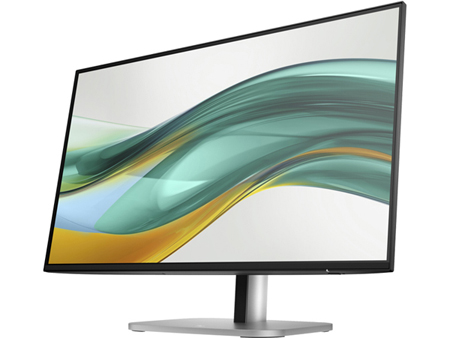

HP Series 5 Pro 524pf FHD 23.8-inch Monitor - Model # 9D9L6UT / AA / A5 / A9 / E9



The HP Series 5 Pro 524pf FHD 23.8-inch Monitor can be installed in conjunction with a variety of Mariner Kits:

to a flat surface (worksurface / desktop) with Mariner Kit MS1830

to a vertical surface (wall / bulkhead) with Mariner Kit MS1835

into a console / rack with Mariner Kit MS1840

Both the MS1830 (Desk-mount) and MS1835 (Wall-mount) Mariner Kits allow the user to tilt the monitor in the vertical plane by approximately -10 to +20 degrees.

Please note that the although the monitor retains its standard functionality, it is not fully dimmable and it cannot therefore be used in the front of the bridge where it may affect night vision. However, the monitor can be used in any area where night vision is not an issue.

Click here to view HP's QuickSpec datasheet -



Monitor

Manufacturer

HP Inc.

Manufacturer’s Part Number:

 9D9L6UT / AA / A5 / A9 / E9

Description

HP Series 5 Pro 524pf FHD 23.8-inch Monitor
Display Size (Diagonal) 23.8-inch
Aspect Ratio 16:9

Use with Mariner Kit:

MS1830 (Desk-mount)

MS1835 (Wall-mount)

MS1840 (Console-mount)
BACK TOP

Model No ABS BV CCS DNV KR LR NKK PRS RINA
6N6E9AA Testing completed OK - certificate pending Testing completed OK - certificate pending Testing completed OK - certificate pending Testing completed OK - certificate pending Testing completed OK - certificate pending Testing completed OK - certificate pending Testing completed OK - certificate pending Testing completed OK - certificate pending Testing completed OK - certificate pending

Type-approved - click here to view certificate Type-approved (click for certificate) Testing completed OK - certificate pending Passed testing - certificate pending
Testing in progress Testing in progress No application made No application made

BACK TOP

Technical Specifications

Display Panel Type

IPS
Aspect Ratio
16:9

Native Resolution

FHD (1920 x 1080)
Brightness - Typical 350 nits
Static Contrast Ratio - Typical 1500:1
Dynamic Contrast Ratio (DCR) 10M:1
Connector Types

DisplayPort 1.2, HDMI 1.4, USB-A, USB-B

HDCP support on DisplayPort and HDMI

Power supply

100 - 240 VAC at 50/60Hz

Dimensions (W x D x H)

540 x 48 x 315 mm (head only w/o stand)

Weight

3.4 kg (head only w/o stand)
Regulatory

WW application
CB/KC/NOM/TUV-S/ISO 9241-
307/EAC/cTUVus/PSB/ISC/CCC/CECP/SEPA/TCO/TCO
Certified Edge/GS/TUV HW
LBL/UAE/Ukraine/BIS/NRCS/CE/FCC/VCCI/BSMI/EMF/KCC/I
CES/RCM/Australian-New Zealand DoC/Energy Star/Korea
MEPS/Ukraine EE/CEL/California CEC/WEEE/PSE/TGM

ENERGY STAR Certified, EPEAT Gold in United States, CEL Grade 2, Microsoft WHQL Certification (Windows 10 and 11 x64 only), TCO Certified, TCO Certified Edge, SmartWay Transport Partnership (NA SKU)

Warranty

Protected by HP, including a 3-year standard limited warranty. Certain restrictions and exclusions may apply. For details, contact HP Customer Support.
Country of Origin China
BACK TOP

Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard Hewlett-Packard warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at www.hp.com for further details.
