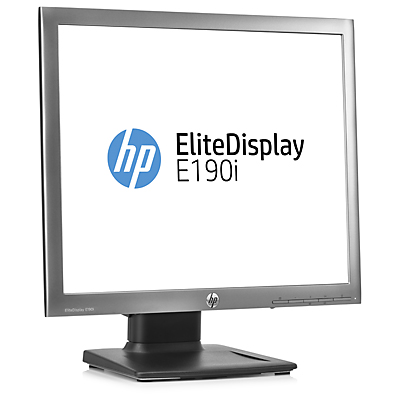

HP EliteDisplay E190i 19-inch LED Backlit IPS Monitor - Model # E4U30AA / E4U30AT

HP EliteDisplay E190i 19-inch LED Backlit IPS Monitor (E4U30AA/T)

The HP EliteDisplay E190i 19-inch LED Backlit IPS Monitor can be installed in conjunction with a variety of Mariner Kits:

to a flat surface (worksurface / desktop) with Mariner Kit MS1170

to a vertical surface (wall / bulkhead) with Mariner Kit MS1175

into a console / rack with Mariner Kit MS1180

Both the MS1170 (Desk-mount) and MS1175 (Wall-mount) Mariner kits allow the user to tilt the monitor in the vertical plane by approximately -10 to +20 degrees.

As an option, the MS1170 Mariner Kit can be installed directly on top of the MS2310 or MS2330 Mariner Kits using our optional adaption brackets (AB500).

Please note that the although the HP LCD monitor retains its standard functionality we do not offer an automatic dimming function and it can not therefore be used in the front of the bridge where it may affect night vision. However, the LCD monitor can be used in any area where night vision is not an issue.

Click here to view HP's QuickSpec datasheet -



Monitor

Manufacturer

Hewlett-Packard

Manufacturer’s Part Number:

 E4U30AA / E4U30AT

Description

HP EliteDisplay E190i 19-inch LED Backlit IPS Monitor
Aspect Ratio 5:4

Use with Mariner Kit:

MS1170 (Desk-mount)

MS1175 (Wall-mount)

MS1180 (Console-mount)
BACK TOP

Model No ABS BV CCS DNV-GL KR LR NKK PRS RINA
E4U30AA/T Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate

Type-approved - click here to view certificate Type-approved Testing completed OK - certificate pending Passed testing - certificate pending
Testing in progress Testing in progress No application made No application made

BACK TOP

Specification

Display type

TN (Twisted Nematic) LED Backlit LCD

Aspect Ratio 5:4

Recommended resolution

1280 x 1024 @ 60 Hz analog and digital modes

Power supply

Auto-ranging 90 to 265 VAC; internal power supply

Dimensions (H x W x D)

347 x 417 x 47 mm (panel only)

Weight

2.8 kg (panel only)
Regulatory TCO Displays, ISO 9241-307, CISPR Requirements, VCCI Approvals, KC and KCC (Korean) Requirements, CSA 60950-1, UL 60950-1, EN 55022 Class B, CNS 13438 Class B, IEC 60950-1, China Energy Label (CEL), China MEPS, Korea MEPS (pending), Smart Way - NA only - Energy logistics, EUP Lot 6 Tier 1 AS/NZS 3548 Class B Approval, "GS" Mark, TUV Approvals, GEEA, CE Marking, FCC Part 15 Class B Approval, Energy Star qualified, EN55024 Class B, EN 60950-1, CUL, CCIB, CCEE, IT ECO (EDS), EPEAT Gold (select regions)

Warranty

Limited three years parts, labour, and on-site service. Certain restrictions and exclusions may apply. For details, contact HP Customer Support.
BACK TOP

Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard Hewlett-Packard warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at www.hp.com for further details.
