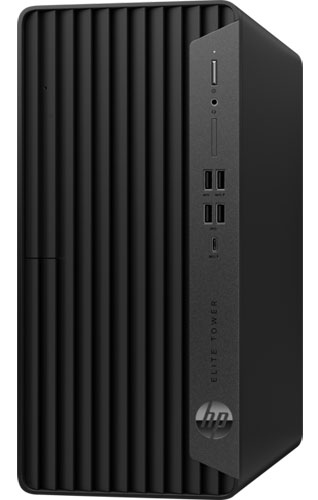

HP Elite 800 G9 Tower (TWR) PC



Desktop / Tower Configurations:

The HP Elite 800 G9 Tower PC offers superior performance / expandability and can also be installed as a desktop should you prefer.

The HP Elite 800 G9 Tower PC is only marine type approved by all of the major international marine Classification Societies when it is installed in conjunction with the following:

Mariner Kit MS2650 - Desktop configuration

Mariner Kit MS2660 - Tower configuration

Our Mariner Kits afford protection against the effects of vibration and shock experienced in the offshore marine environment. The type approved combination of HP hardware and Mariner Kit can be used as the platform for your critical navigation, control, loading and general purpose applications.*

HP Elite 800 G9 Tower PC

Click here to view HP's QuickSpec datasheet -


Type-approved - click here to view certificate Type approved Testing completed OK - certificate pending Passed testing - certificate pending
Testing in progress Testing in progress No application made No application made

  ABS BV CCS DNV KR LR NKK PRS RINA

Models with processors up to and including:

3.3GHz (4.9GHz turbo), 25MB cache, 12 cores

 Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate Type-approved - click here to view certificate
BACK TOP


HP Elite 800 G9 Tower model range

use with

MS2650 (Desktop config); or

MS2660 (Tower config)

Component Options

Processor - up to and including Intel Core i7, Core i5 or Core i3 with 3.3GHz (4.9GHz turbo), 25MB cache, 12 cores

(refer to our list of approved accessories for more component options)
BACK TOP

OPERATING GUIDELINES

Although all of our solutions are tested against extreme environmental conditions for the purposes of marine type approval, installation should take into account the following guidelines:

> Keep the computer away from excessive moisture, direct sunlight and the extremes of heat and cold. Wherever possible, ensure that the unit is operated within the manufacturer's specified operating range:

Temperature : 10 to 35 C (operating), -30 to 60 C (non-operating)

Humidity : 10 to 90% (operating), 5 to 95% (non-operating)

> Leave a 10.2cm (4-inch) clearance on all vented sides of the computer to permit the required airflow

> Never restrict airflow into the computer by blocking any vents or air intakes

> Occasionally clean the air vents on all vented sides of the computer

> If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure, and the same operating guidelines listed above still apply

By following these guidelines you will maximise the life of your computer and minimise service costs
BACK TOP

* check individual type-approval certificates for any restrictions

Warranties: All Mariner kits have a three year warranty from the date of purchase and will be replaced FREE OF CHARGE by Mariner Systems (UK) Ltd. should you experience any problem with your Mariner kit during this period.The standard Hewlett-Packard warranty conditions apply to the hardware.

For technical support please contact your local HP Customer Support Centre or HP dealer. Please visit the HP website at www.hp.com for further details.
